Shelters + Canopies
When it comes to Shelters + Canopies we’ve got you covered.
Here you’ll see our versatile Peak and Summit cycle shelters, our Elements Pergola System and our Mount Storage Compounds, but if you’re in need of entrance or walkway canopies, we can engineer a solution that works for you.
We’ve designed and manufactured hundreds of standard and bespoke Shelters + Canopies over the years, and can deliver more of the same.
All our shelters are fully designed and manufactured in the UK, and have been structurally calculated to ensure they meet the standards required.
Peak Modular Cycle Shelter
Peak can be supplied to any length based on a maximum bay of 5m. It features a sturdy hot-dip galvanised frame clad in clear PETG plastic sheeting to provide cover for bicycles, motorbikes, pushchairs, smokers and anything else you might want to protect.
Peak’s frame can be left as galvanised, or polyester powder-coated to any RAL or BS colour. The frame can be accessorised with additional supports for lighting, lockable gates and integrated cycle stands to avoid having to further interrupt surface finishes.
Installation:
Surface-mounted via 4x Max. M12 fixings per foot as standard.
Dimensions:
4100 x 1920 x 2200 as standard. 10-space shelter 285 kg
Standard Materials + Finishes:
Steel, hot-dip galvanised
Polyester powder-coated option
PETG Plastic
Clear
All fixings min. A2 stainless steel
Alternatives to all materials available on request
Summit Modular Canopy
Summit is typically supplied in 4m or 5m bays, allowing spaces for up to 24 bicycles between legs. Hot-dip galvanised heavy duty columns give Summit a small footprint with huge coverage in plan. The roof is clad in multiwall polycarbonate plastic, perfect for covering 2 rows of hoop cycle stands, or our duplex two-tier racks.
Summit is modular and can span any length needed. The framework can be left as galvanised, or polyester powder-coated to any RAL or BS colour.
Installation:
Surface-mounted via 8x Max. M16 fixings per leg as standard.
Dimensions:
4260 x 2850 x 2900 as standard. 24-space shelter 405 kg
Standard Materials + Finishes:
Steel, hot-dip galvanised
Polyester powder-coated option
Multiwall Polycarbonate Plastic
Clear
All fixings min. A2 stainless steel
Alternatives to all materials available on request

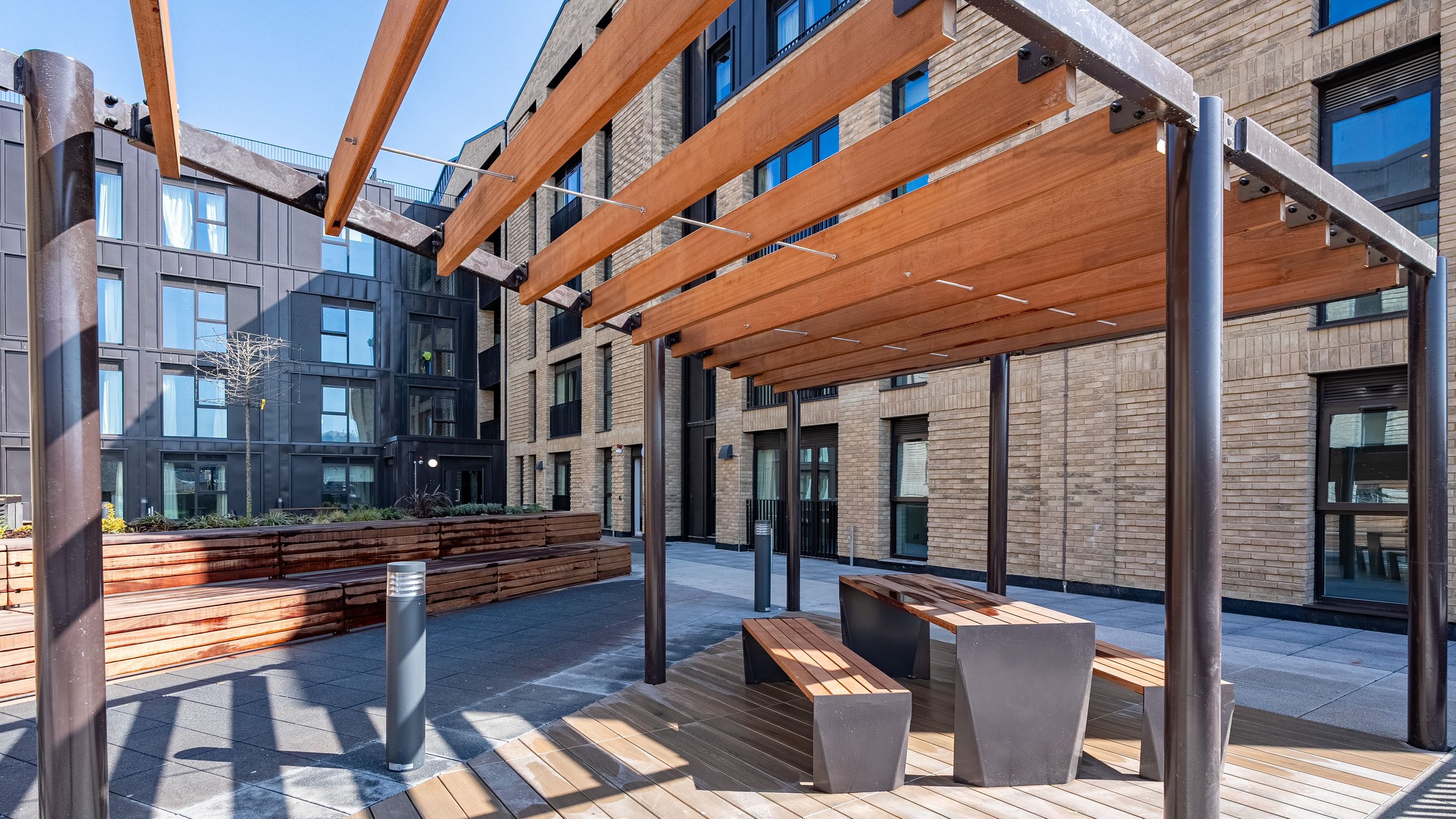

Elements Pergola System
Elements was designed for terraces and podiums, where verticality and delineation of spaces is required. The aluminium construction gives a rock-solid, yet lightweight structure on which to build your bespoke design. Small or large, with privacy panels and louvres, or with integrated planting, seating and lighting, Elements can do it all.
Installation:
Typically 4x Max. M16 fixings per leg but can be adapted to suit different sites.
Dimensions:
To specification
Standard Materials + Finishes:
Aluminium, Polyester powder-coated
Various timber species available to tie in with local material strategy
All fixings min. A2 stainless steel
Alternatives to all materials available on request

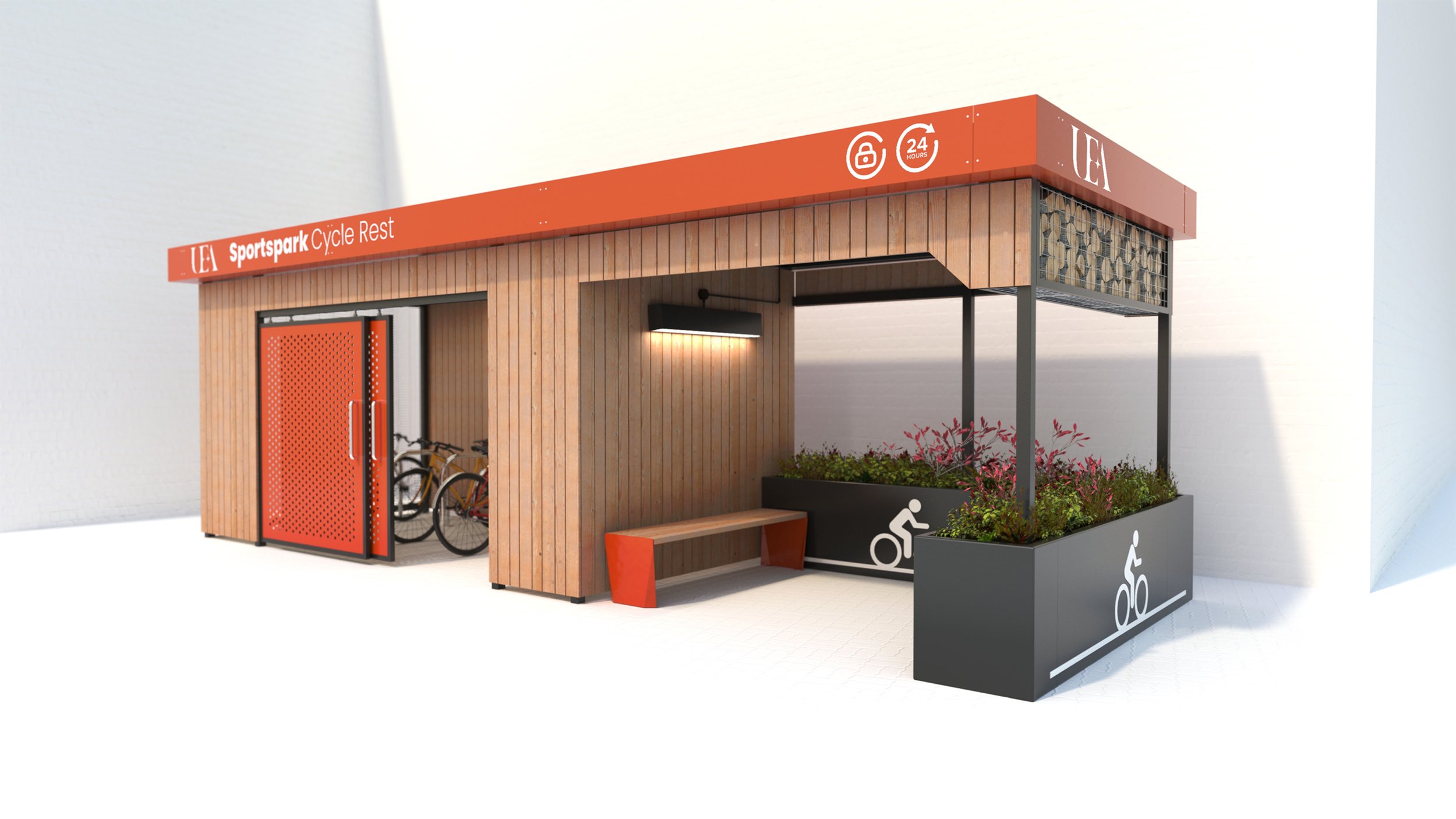

Mount Storage Compound
Our Mount storage compound is made to order for your site’s particular needs, whether that’s bin storage, cycle parking or just an outdoor covered space. It comprises a structural steel frame clad in timber, with either lockable doors or open to one or more sides.
The Mount compound unit, like it’s Mount seating counterparts, can be adapted to include a range of functional options like sliding doors, electronic access, green-roof, insect habitat and a whole load more, just see the below!
Installation:
Surface-mounted via 4x Max. M12 fixings per leg as standard.
Dimensions (example):
4000 x 2500 x 2300. 10x cycle spaces or 3x 1100L Euro Bins. 690 kg
Standard Materials + Finishes:
Steel, hot-dip galvanised
Polyester powder-coated option
All fixings min. A2 stainless steel
Alternatives to all materials available on request
Various timber species available to tie in with local material strategy
From open-fronted bin and cycle storage, to fully secure, electronic-access compounds, we can design and manufacture whatever’s needed.
Why not integrate covered seating & lighting to increase value and function, or planting, green-roof & insect habitats to boost biodiversity and mental wellbeing.
